Cyclone Outdoor DC Power Cable
Price range: $96.00 through $1,934.00
Cyclone DC Power Cable – Shielded PVC/Nylon, Outdoor-Ready (10–18 AWG, Custom Lengths)
Built for tough outdoor deployments, the Cyclone DC Power Cable (CYG-CXXXX-XXXFT series) delivers reliable power to radios, WISP/telecom gear, and industrial devices. A rugged, shielded construction with PVC/Nylon insulation and an overall PVC jacket helps resist abrasion, moisture, and flame while maintaining flexibility across extreme temperatures.
Key Features
- Rugged Shielded Construction: PVC/Nylon insulated conductors with aluminum shield & drain under an overall PVC jacket.
- UL & Safety Ratings: UL Listed as TC-ER-JP per UL 1277*; OSHA acceptable; NEC Articles 392 & 336; CSA FT4; passes IEEE 1202 70,000 BTU flame test.
- Wide Temperature Range: Rated from –38.2 °F to 194 °F (–39 °C to 90 °C).
- Gauge Options: Available in 10, 12, 14, 16, and 18 AWG.
- Custom Lengths: Order in 100–1000 ft increments (100, 200, 300, …, 1000 ft) to minimize waste.
*UL 1277 requires a ground or three conductors to qualify for the ER rating.
Applications
-
- Powering outdoor wireless access points, radios, and telecom equipment
- Industrial/utility runs exposed to weather and mechanical stress
- Structured cabling where flame resistance and shielding are required
Available Variants & Quick Specs
| Part # | AWG | # of Conductors | Overall Jacket (mils) | Approx. O.D. (in) | Approx. Weight (lb/1000 ft) |
|---|---|---|---|---|---|

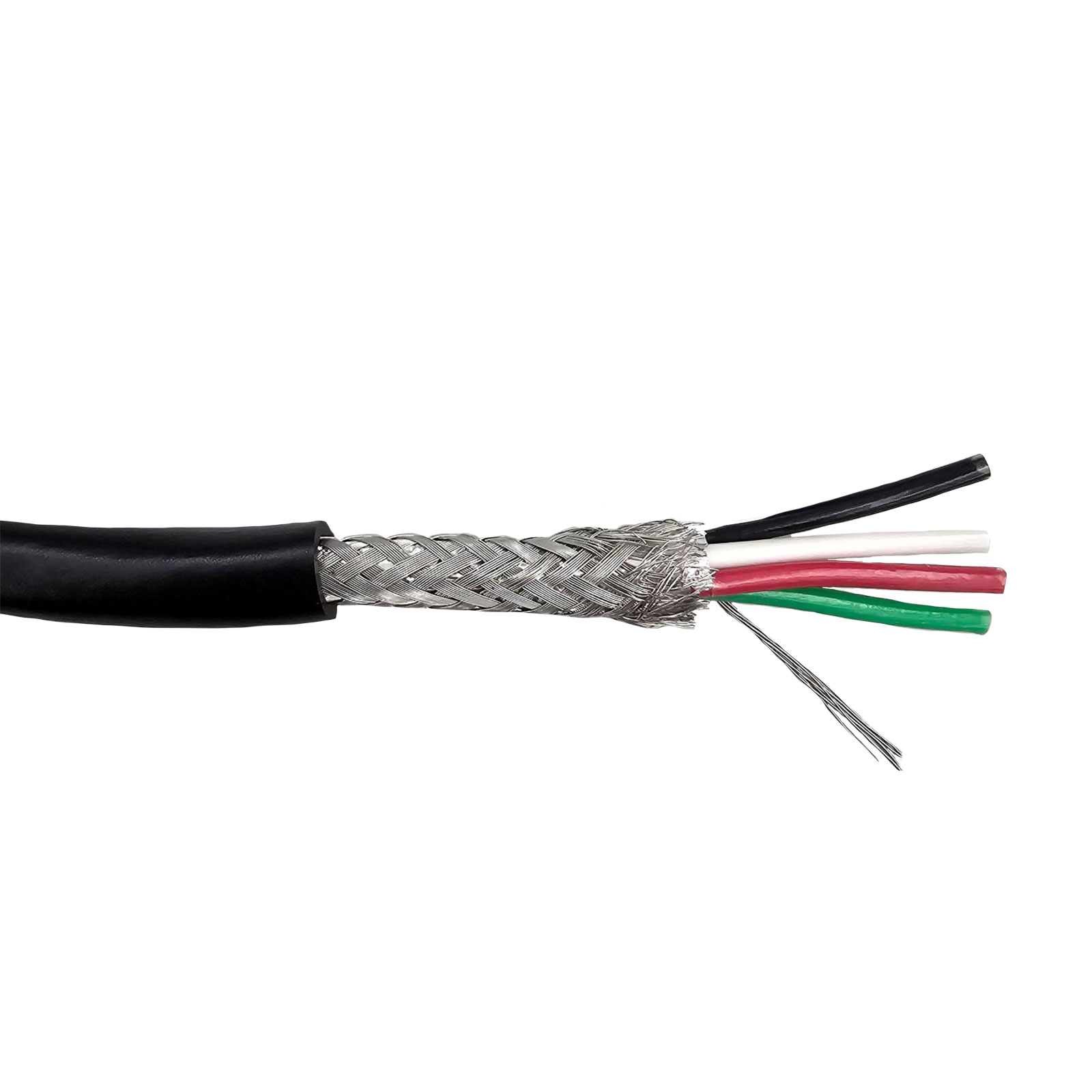

| CYG-C18X4-XXXFT | 18 | 4 | 45 | 0.301 | 72 |
| CYG-C16X2-XXXFT | 16 | 2 | 45 | 0.290 | 62 |
| CYG-C14X2-XXXFT | 14 | 2 | 45 | 0.320 | 85 |
| CYG-C12X2-XXXFT | 12 | 2 | 45 | 0.358 | 107 |
| CYG-C10X2-XXXFT | 10 | 2 | 45 | 0.428 | 142 |
Conductor Data
| AWG | Stranding | PVC Insulation (mils) | Nylon Armor (mils) | Approx. Conductor O.D. (in) |
|---|---|---|---|---|
| 18 | 7 | 15 | 5 | 0.086 |
| 16 | 7 | 15 | 5 | 0.098 |
| 14 | 7 | 15 | 5 | 0.113 |
| 12 | 7 | 15 | 5 | 0.132 |
| 10 | 7 | 20 | 5 | 0.167 |
What’s Included
- DC power cable in selected gauge and length
- Factory-spooled for easy pulls
Why Choose Cyclone
- Telecom-grade materials and compliance
- Outdoor-ready shielding and jacket
- Multiple gauges and lengths for cost-efficient installs
Additional information
| Weight | N/A |
|---|---|
| Gauge | 18AWG, 16AWG, 14AWG, 12AWG, 10AWG |
| Conductors | 4-Conductor, 2-Conductor |
| Length | 1000FT, 100FT, 200FT, 300FT, 400FT, 500FT, 600FT, 700FT, 800FT, 900FT |
