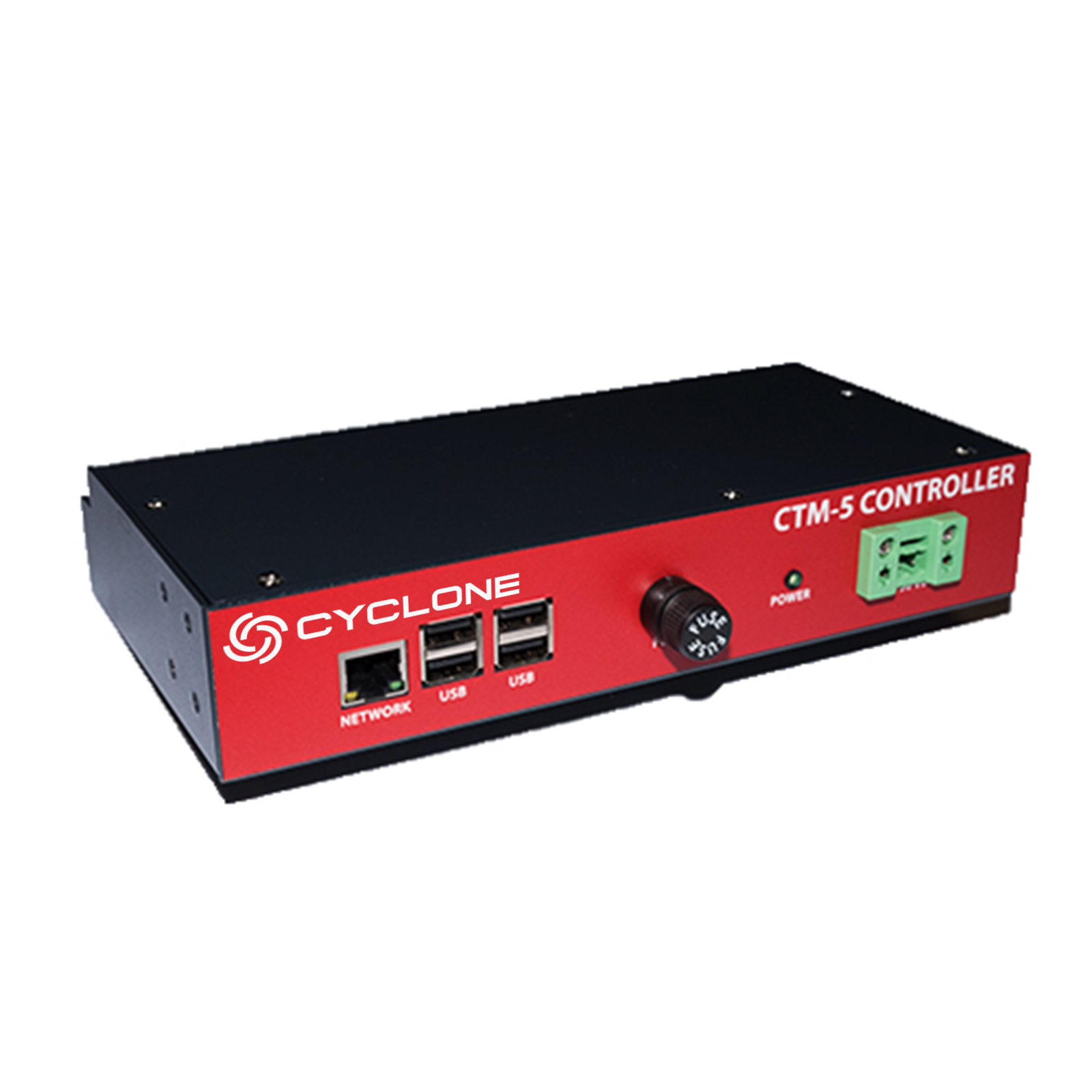

Cyclone Controller for CTM5/CMM5 Timing Unit

The Cyclone-CTM5 Controller is a timing unit for the Cyclone CTM-5, can manage up to 8x CTM-5 Injectors, and provides web-based and SNMP Management.The Cyclone CTM-5 Controller is an affordable solution for anyone looking to optimize the circulation of their TDD Synchronization signals, power over ethernet, and overall network. Its modular design features 5 individual port power injectors. The controller can also be used for remote management.

Cyclone CTM-5 Features:

• Support for Gigabit Ethernet
• Modular and scalable from 4 ports to 32 ports
• Dual resilient power inputs
• Rack-mountable
• Secure remote management when used with the optional CTM-5 Controller Module
• Compatible with Cambium Networks Products

Interfaces:

• 4x USB Serial Ports (1 only used for connection to first injector in daisy chain)
• 1x RJ-45 10/100/1000BaseT Ethernet port
• 1x DC power input

Product Includes:

• Cyclone Controller
• Controller to Injector Cable
• DC Power Plug
• Rackmount Kit
• Quick Start Guide
